Deskripsi Tang Ampere Kyoritsu 2117R

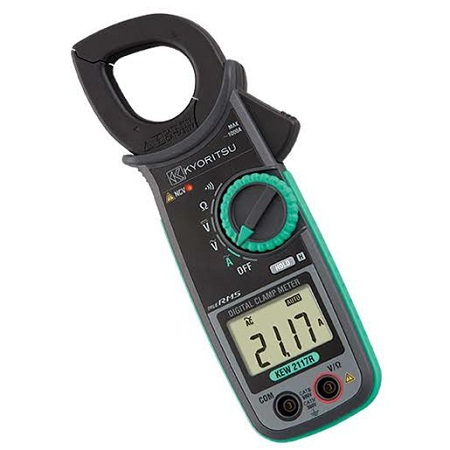

Ac Digital Clamp Meter KEW 2117R

Fully Safety jaw
Ergonomic over-molded body gives convenient one-hand operation
Large easy-to-read display with 0.01A resolution
Accurate reading with True RMS 60/600/1000A auto-ranging
Long battery life
Safety Standard EC 61010-1 CAT IV 300V / CAT III 600V

AC A 60.00/600.0/1000A (Auto-ranging)
1.5%rdg 4dgt [45 – 65Hz]
2.0%rdg 5dgt [40 – 1kHz]
AC V 60.00/600.0V (Auto-ranging)
1.0%rdg 2dgt [45 – 65Hz] (600V)
1.5%rdg 4dgt [40 – 1kHz]
DC V 60.00/600.0V (Auto-ranging)
1.0%rdg 3dgt (60V)
1.2%rdg 3dgt (600V)
600.0/6.000/60.00/600.0k (Auto-ranging)
1.0%rdg 5dgt (600)
2.0%rdg 3dgt (6/60/600k)

Continuity buzzer 600
Conductor size 33mm max.
Applicable standards IEC 61010-1 CAT IV 300V, CAT III 600V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033, IEC 61326-2-2, IEC 60529, EN50581 (RoHS)
Power source R03/LR03 (AAA) (1.5V) 2
Continuous measuring time Approx.170 hours (Auto power save : approx. 10 minutes)
Dimensions 204(L) 81(W) 36(D)mm
Weight 220g Approx. (including batteries)

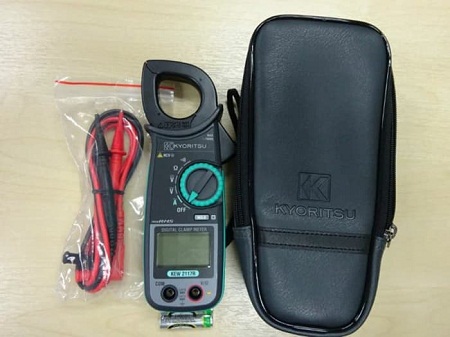

Accessories 7066A (Test leads), 9079 (Carrying case), R03 (AAA) 2,
Instruction Manual
